Samples Gallery

Click on the thumbnail to enlarge.

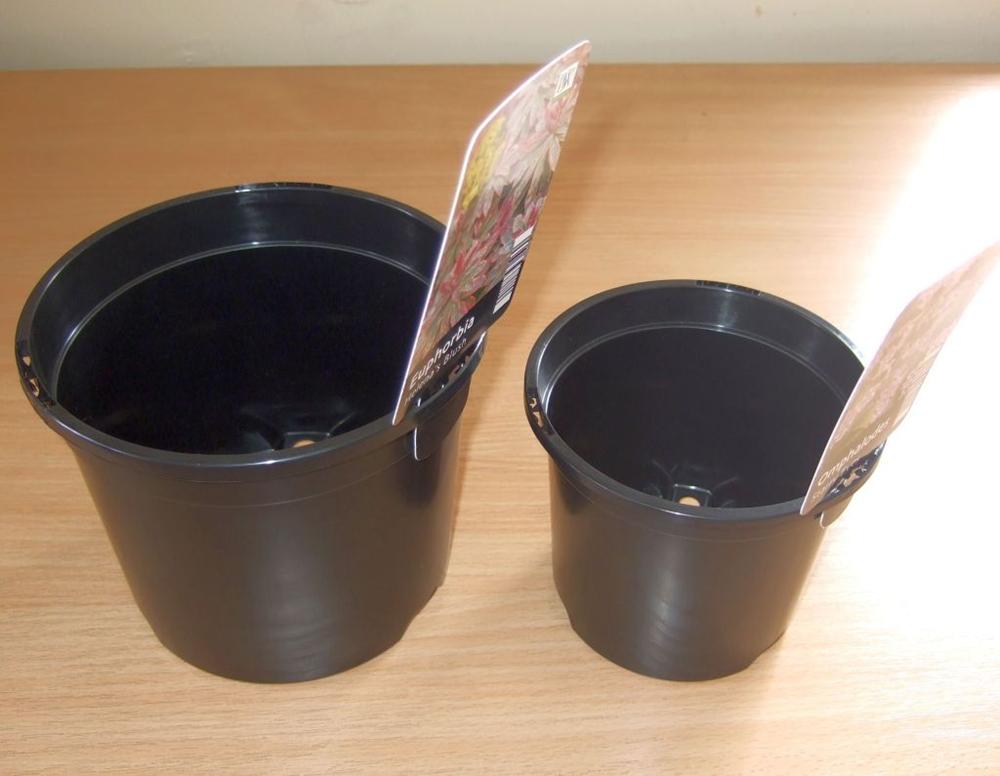

Thin wall section plant pot, fast cycling

1 litre and 2 litre plant pots with label security slots. 0.45 wall thickness. Fast cycling

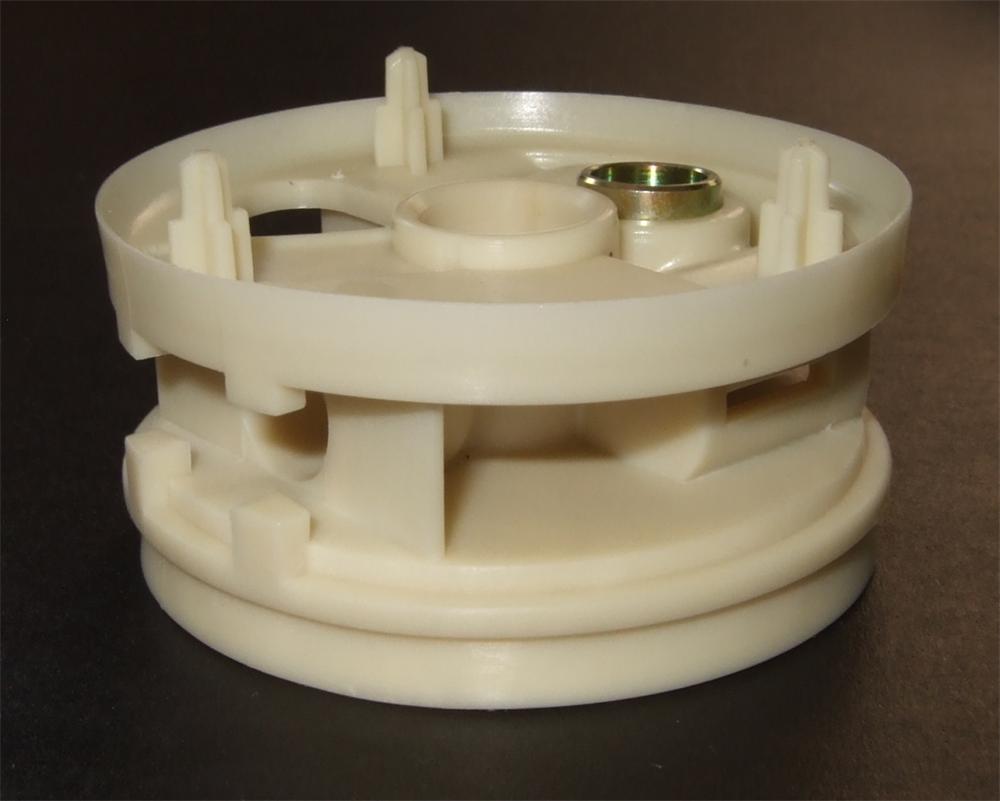

Moulding requiring 4 side actions

Complex injection moulding in Glass Filled Nylon. One item in a 1+1 family tool
Moulded Curtain Pole Twist Finial

2 impression hot runner injection mould tool with valve gates

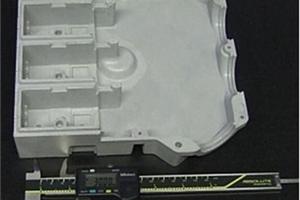

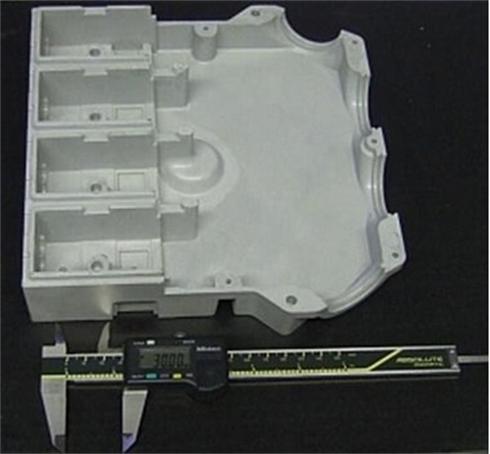

Connector Housing in DMC. Injection tool

Injection mould tool for thermosetting material

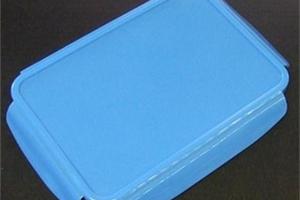

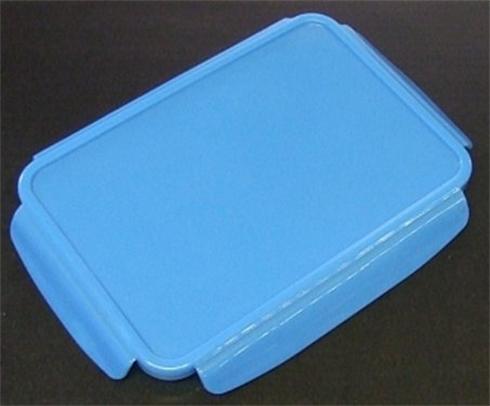

Injection moulded Food container lid with clips

Injection mould tool with up and away ejectors and hot tip feed

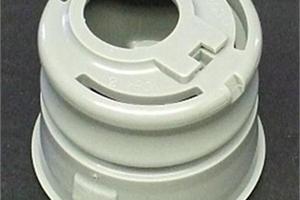

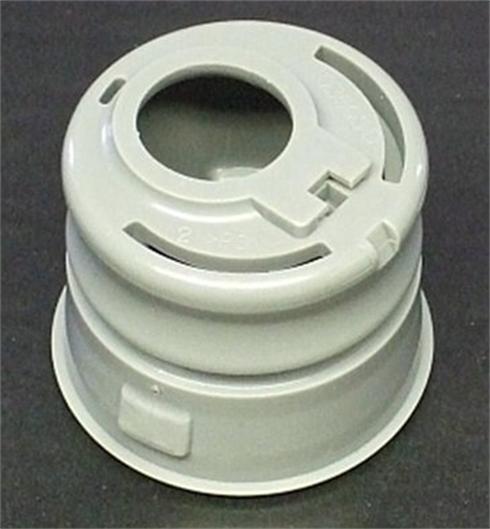

Moulded Fuel Filler Insert for Ford Focus

4 cavity hot runner injection mould tool with collapsing cores and side actions for Fuel Filler Insert in Delrin Acetal

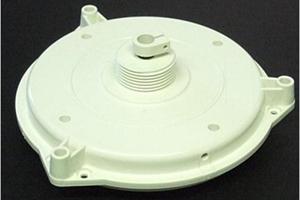

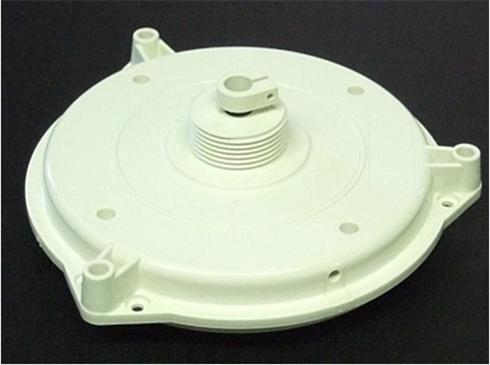

Satellite tracking system base moulding

Injection moulded component with expanding cores on the fixed half.
Injection moulded Medical pump fitting

Complex injection mould tool for component in Ryton PPS (polyphenylene sulfide)
Washroom Hand Drier Cover moulding

Single cavity injection mould tool with large up and away ejector and external side action. Highly polished cavity.

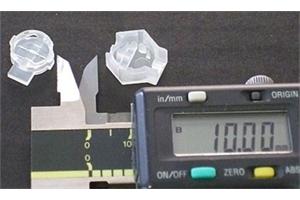

Injection moulded Telecom Connecter Halves

Parts clip together. 3 side actions. Features as small as 0.05mm

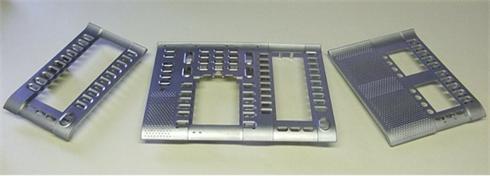

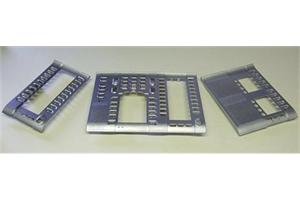

Moulded Fascias for specialist telephones

3 off mould tools for range of Fascias for specialist telephones
Injection moulded Taxi Cab Centre Console

Single cavity injection mould tool. Spark eroded finish. Overall component size 455 x 210 x 120
